Understanding Wafer Size in Semiconductor Production
In the semiconductor industry, the size of the silicon wafer plays a crucial role in determining the efficiency and cost-effectiveness of chip production. Over the years, wafer sizes have evolved significantly, with the industry moving from small 25mm wafers to the current standard of 300mm wafers. As the demand for more powerful and compact electronic devices grows, the push towards even larger wafer sizes continues. This article delves into the evolution, importance, and future prospects of wafer sizes in semiconductor manufacturing.
Key Takeaways
- Larger wafer diameters enable the production of more semiconductor devices from a single wafer, enhancing productivity and efficiency.
- The semiconductor industry has seen a significant increase in wafer sizes over the past few decades, moving from 25mm to 300mm wafers.
- Current research and development efforts are focused on transitioning to 450mm wafers, which promise even greater efficiency and cost benefits.
- There are common misconceptions about wafer sizes, such as the incorrect conversion of 300mm wafers to 12 inches instead of the accurate 11.8 inches.
- Increasing wafer size presents several challenges, including manufacturing difficulties, high investment costs, and the need for industry-wide standardization.
The Evolution of Wafer Size in Semiconductor Manufacturing
Historical Progression of Wafer Sizes
The size of wafers has increased over time, from earlier 25mm options to massive 300mm diameter wafers common in high-volume manufacturing today. Silicon wafers are available in a variety of sizes from 25.4 mm (1 inch) to 300 mm (11.8 inches). This gradual increase in size has been driven by the need to improve productivity and reduce costs. Conversion to 300 mm wafers from 200 mm wafers began in the early 2000s, reducing the price per die by about 30–40%. Larger diameter wafers allow for more die per wafer, making the manufacturing process more efficient.
Current Standard Wafer Sizes
Today’s common wafer size is 300mm, which is 11.8 times larger than the original 1-inch wafers. This size is now standard in high-volume manufacturing due to its efficiency and cost-effectiveness. The semiconductor industry has invested heavily in increasing wafer size over the last 30 years, re-engineering manufacturing technologies to achieve this growth.

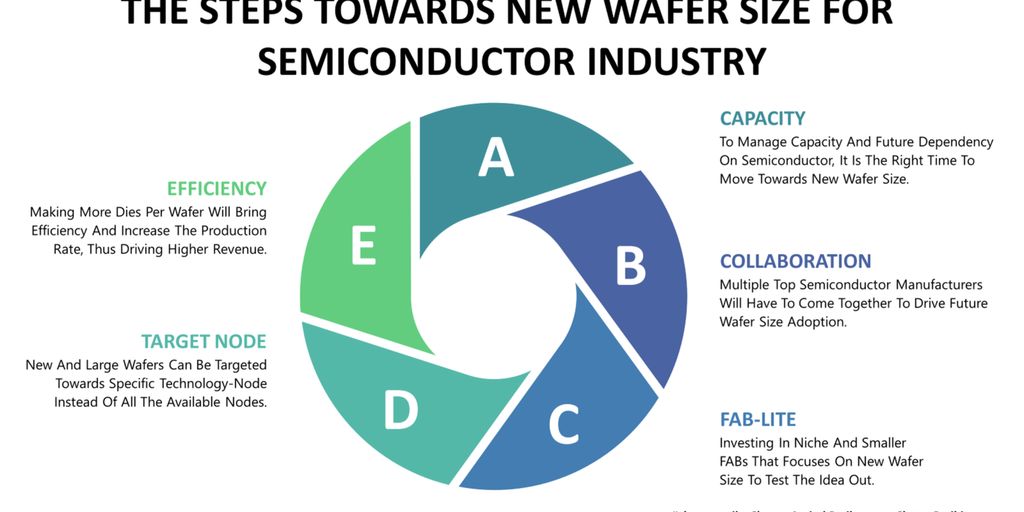

Future Trends in Wafer Size
There is a clear plan to move towards a 450mm wafer size, which is 1.5 times larger than the current 300mm wafers. This transition is expected to further reduce costs and improve productivity. However, increasing wafer size is not a trivial process and requires significant capital investment and technological innovation.
Importance of Wafer Size in Semiconductor Production
A larger wafer diameter enables producing more semiconductor devices from a single wafer, enhancing productivity and efficiency. If foundries would still produce 1 inch wafer today, there is no chance they’d be able to support the volume of smart-phones, tablets, and PCs.
Increasing wafer size is not a trivial process. The semiconductor industry has invested heavily to increase the wafer size during the last 30 years. The amount of capital invested in size growth innovation is difficult to grasp, but it is estimated to be around a triple-digit billion USD.
Silicon wafer manufacturing technologies were re-engineered in order to achieve the technology necessary to increase the wafer size. This re-engineering is vital for later photolithography processes needing tiny component details etched at nearly atomic scale across the surface.
Common Misconceptions About Wafer Sizes
Inches vs. Millimeters
One of the most common mistakes in the industry is describing wafer sizes using inches instead of millimeters. For example, a 300mm wafer is often incorrectly referred to as a 12-inch wafer. In reality, a 300mm wafer is actually 11.8 inches. Here is a quick reference table for common wafer sizes:
| Wafer Size (mm) | Wafer Size (inches) |
|---|---|
| 150 mm | 5.9 inches |
| 200 mm | 7.9 inches |
| 300 mm | 11.8 inches |
| 450 mm | 18 inches |
Misunderstandings About 300mm Wafers
The 300mm wafer is often misunderstood due to its size being rounded up to 12 inches. This rounding can lead to confusion in technical discussions and specifications. It’s crucial to use the correct millimeter measurement to avoid any discrepancies.
Clarifying 450mm Wafer Development
The development of 450mm wafers has been a topic of much debate and misunderstanding. While many believe that transitioning to 450mm wafers is straightforward, it involves significant technological and financial challenges. The industry is still in the research and development phase, and widespread adoption is not yet a reality.
Technical Specifications of Semiconductor Wafers
Understanding the technical specifications of semiconductor wafers is crucial for optimizing production and ensuring high-quality output. Here, we delve into the key parameters that define these wafers.
Diameter and Thickness
The diameter of semiconductor wafers has evolved significantly over the years. Current standard wafer sizes include 2-inch (51 mm), 4-inch (100 mm), 6-inch (150 mm), and 8-inch (200 mm) wafers. The most advanced fabs now use 300mm wafers, which allow more chips per wafer, thereby increasing yields. The industry is also actively developing 450mm wafers for future high-volume manufacturing.
The thickness of these wafers varies from around 500-900μm (0.5-0.9mm), which is about as thick as 5-10 human hairs.
Material Composition
The primary material used in semiconductor wafers is silicon. However, other materials like gallium arsenide (GaAs) and silicon carbide (SiC) are also used for specific applications. The choice of material impacts the wafer’s electrical properties and suitability for different types of semiconductor devices.
Surface Quality Requirements
Surface quality is a critical parameter in semiconductor wafer specifications. Pristine surfaces with precise tolerances are essential for high-performance semiconductor devices. This includes parameters like surface flatness, roughness, and the absence of defects. Advanced inspection systems are used to ensure that wafers meet these stringent quality requirements.
Challenges in Increasing Wafer Size
Increasing wafer size is not a trivial process. As a matter of fact, silicon wafer manufacturing technologies were re-engineered in order to achieve the technology necessary to increase the wafer size during the years. It is difficult to grasp the amount of capital invested in the size growth innovation. My guess is around a triple-digit Billion USD.
Manufacturing Difficulties
Larger wafer sizes are prone to defects such as contamination and warpage. Careful process optimization is important for leveraging the utmost benefits of the wafer size in use for improved yield and production efficiency.
Investment and Costs
The cost implications of increasing wafer size are substantial. Historical increases of wafer size show that while a unit of wafer fabrication step can produce more chips proportional to the increase in wafer area, the cost of the unit fabrication step goes up more slowly than the wafer area. This was the cost basis for increasing wafer size. Conversion to 300 mm wafers from 200 mm wafers began in early 2000, and reduced the price per die for about 30–40%.
Standardization Issues
The transition to larger wafer sizes also involves significant standardization issues. The semiconductor industry must align on new standards for equipment, processes, and materials to ensure compatibility and efficiency. This alignment is crucial to avoid disruptions in production and to maintain the quality of the wafers produced.
Future Prospects for Larger Wafer Sizes
Research and Development Efforts
The semiconductor industry is continuously pushing the boundaries of technology to develop larger wafer sizes. Significant investment is required for equipment and infrastructure to support these advancements. Research is focused on overcoming the fundamental limits of physics and economics, which are becoming more apparent as wafer sizes increase.
Potential Benefits
Larger wafers offer several advantages, including higher chip density per wafer and increased productivity and cost efficiency. For instance, a 450 mm diameter wafer can produce more chips than a 300 mm wafer, leading to a reduction in the price per die. However, this also comes with increased susceptibility to defects and the need for enhanced mechanical integrity.
Industry Adoption
The transition to larger wafer sizes is not without its challenges. The global semiconductor wafer market size was valued at USD 19.19 billion in 2022 and is poised to grow from USD 20.23 billion in 2023 to USD 30.88 billion by 2030. This growth indicates a strong industry adoption of larger wafer sizes, driven by the need for higher productivity and cost efficiency. However, significant investment and re-engineering of silicon wafer manufacturing technologies are essential to achieve these advancements.
Conclusion
In conclusion, wafer size plays a critical role in the semiconductor industry, directly impacting productivity, efficiency, and cost. The evolution from 25mm to the current standard of 300mm wafers has enabled the mass production of modern electronic devices such as smartphones, tablets, and PCs. As the industry looks towards adopting even larger 450mm wafers, the potential for further cost reduction and increased throughput becomes evident. However, this transition is not without challenges, requiring significant technological advancements and investment. Understanding the importance of wafer size helps in appreciating the complexities and innovations driving the semiconductor industry forward.
Frequently Asked Questions
Why does wafer size matter?
A larger wafer diameter enables producing more semiconductor devices from a single wafer, enhancing productivity and efficiency. If foundries would still produce 1-inch wafers today, there is no chance they’d be able to support the volume of smart-phones, tablets, and PCs.
What are the current standard wafer sizes?
Silicon wafers are available in a variety of diameters from 25.4 mm (1 inch) to 300 mm (11.8 inches). The current state-of-the-art fab uses 300 mm, with a proposal to adopt 450 mm.
Does wafer size matter?
Yes, a larger wafer diameter enables producing more semiconductor devices from a single wafer, thus enhancing productivity and efficiency. If only 1-inch wafers were produced today, they wouldn’t be able to support things like smart-phones, tablets, and PCs.
How is wafer size broken down?
While traditionally wafer diameter was noted in inches, today millimeters is used. For example, a 150 mm wafer is approximately 5.9 inches, a 200 mm wafer is 7.9 inches, a 300 mm wafer is 11.8 inches, and a 450 mm wafer is 18 inches.
What size are most semiconductor wafers?
Common wafer sizes range from 100-450 mm in diameter. State-of-the-art fabs now use 300 mm wafers, which allows more chips per wafer. The industry is actively developing 450 mm wafers for future high-volume manufacturing.
How thin are semiconductor wafers?
The thickness of semiconductor wafers varies from around 500-900μm (0.5-0.9 mm), which is about as thick as 5-10 human hairs.
